S23 Series Miniature Vacuum Liquid Pump with Brushless Motor
![](/uploads/pics_en/S23-1.jpg)

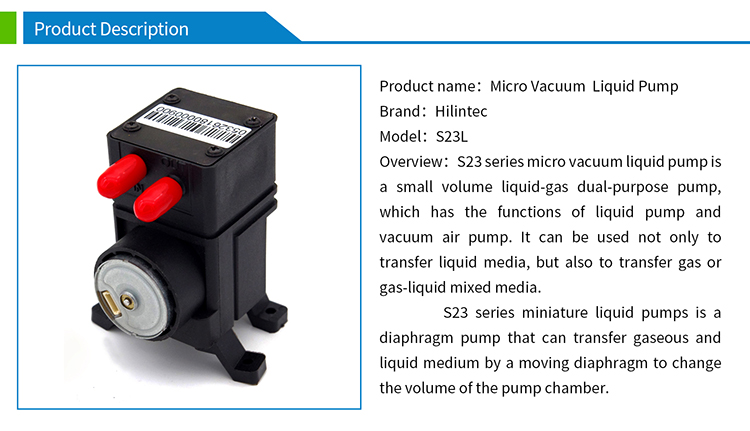

The S23 series is a small volume liquid and gas dual-purpose pump, also known as a micro vacuum pump, which has the functions of a liquid pump and a micro vacuum pump. It can be used to transport liquids and liquid-gas mixed media. It can be running dry and self-priming and does not pollute the conveyed medium.
The flow rate of this type of miniature pump is 0.4L/min when transmitting liquid, and 0.95L/min when transmitting gas
The flow rate of this type of miniature pump is 0.4L/min when transmitting liquid, and 0.95L/min when transmitting gas

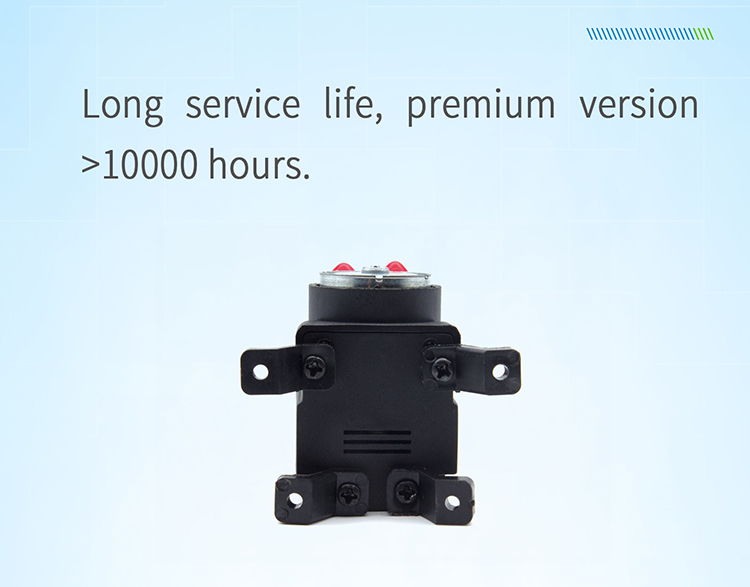

■Equipped with speed control signal port ■No-load pure water flow: 400mL/min ■No-load gas flow: 0.95L/min ■Relative vacuum: -15kPa ■Overall life: premium version>10000hrs (air pumping) 6000hrs (water pumping
