C60 series top configuration speed controllable micro pump
![](/uploads/pics_en/C60-D.jpg)

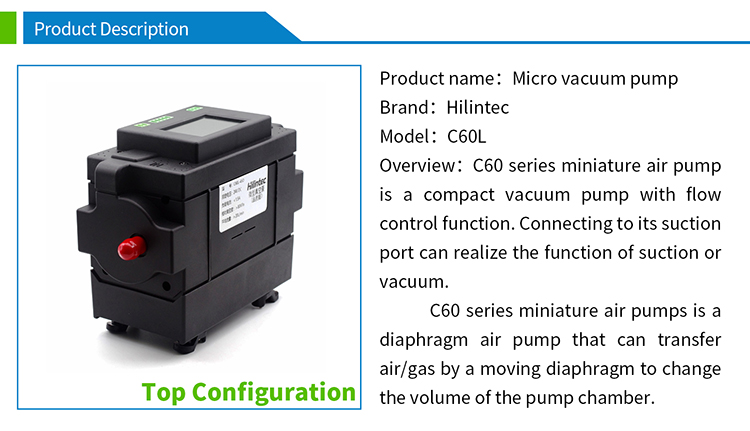

The C60 series miniature air pump is a compact diaphragm vacuum pump with integrated speed and flow control function. The suction port connected to it can achieve the function of pumping or vacuuming.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.

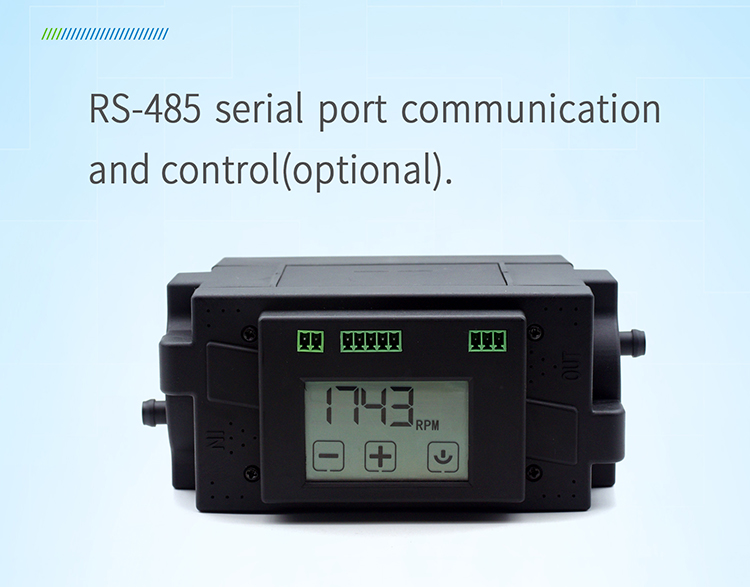

It is especially suitable for scenarios with limited installation space and high vacuum high flow requirements. This model series is equipped with an LCD display, remote control interface and RS-485 communication interface, with high reliability and a peak flow rate of 30L/min.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
It is especially suitable for scenarios with limited installation space and high vacuum high flow requirements. This model series is equipped with an LCD display, remote control interface and RS-485 communication interface, with high reliability and a peak flow rate of 30L/min.

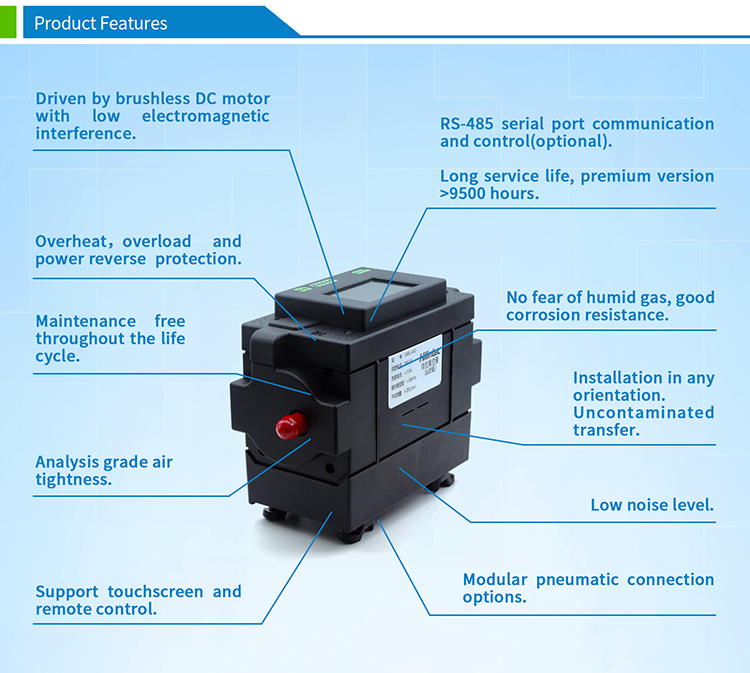

■Equipped with LCD touch screen, speed control signal port and replaceable pneumatic connector
■No-load average flow: 18L/min
■No-load peak flow: 28L/min
■Relative vacuum: -88kPa
■Overall life: premium version>9
