C61 series remote control mini vacuum pump
![](/uploads/pics_en/C61-Y.jpg)

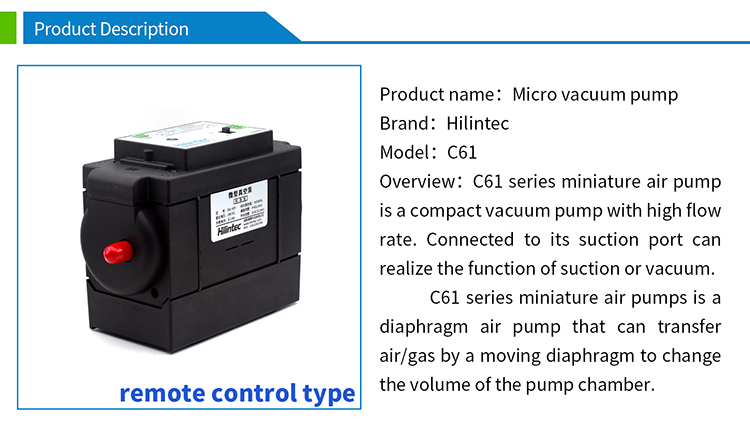

The C61 series miniature air pump is a compact diaphragm vacuum air pump with integrated speed and flow control function. The air extraction port connected to it can achieve the function of air extraction or vacuum extraction.
The main application areas include: gas analysis, environmental testing, laser equipment, biochemical medicine, lab equipment, etc.
Especially suitable for scenarios where installation space is limited, large flow and high vacuum are required. This model series has a remote control interface with high reliability and a peak flow rate of 42L/min.
The main application areas include: gas analysis, environmental testing, laser equipment, biochemical medicine, lab equipment, etc.
Especially suitable for scenarios where installation space is limited, large flow and high vacuum are required. This model series has a remote control interface with high reliability and a peak flow rate of 42L/min.

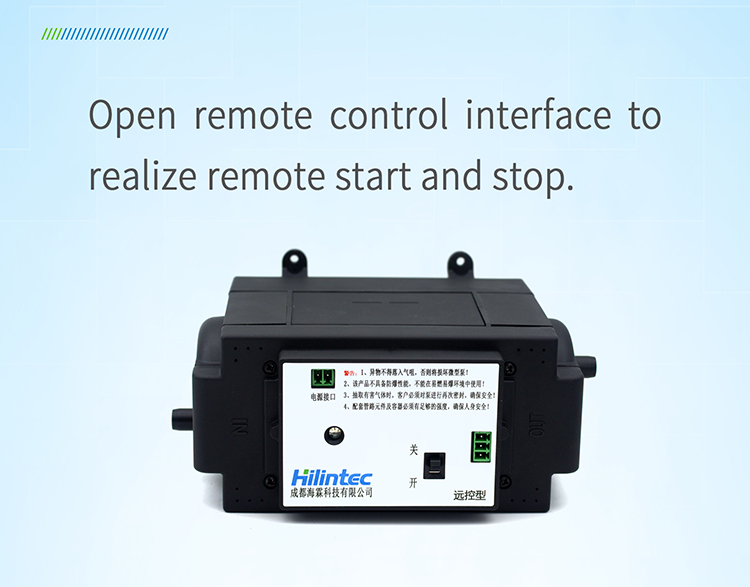

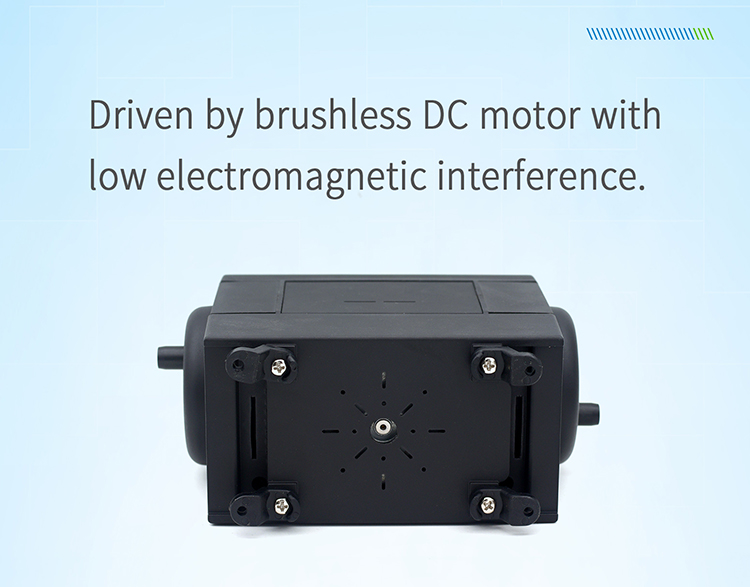

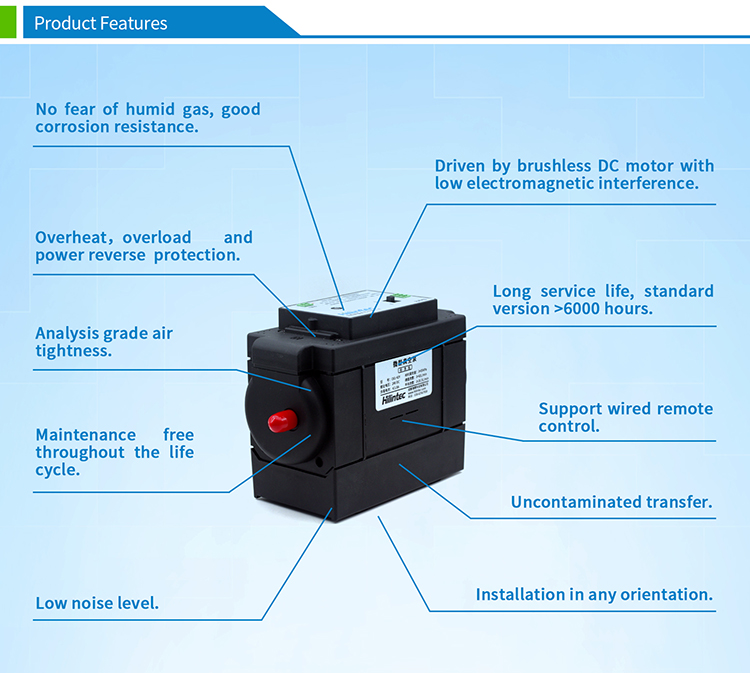

■Equipped with start-stop control signal interface, DC brushless motor and replaceable pneumatic connectors

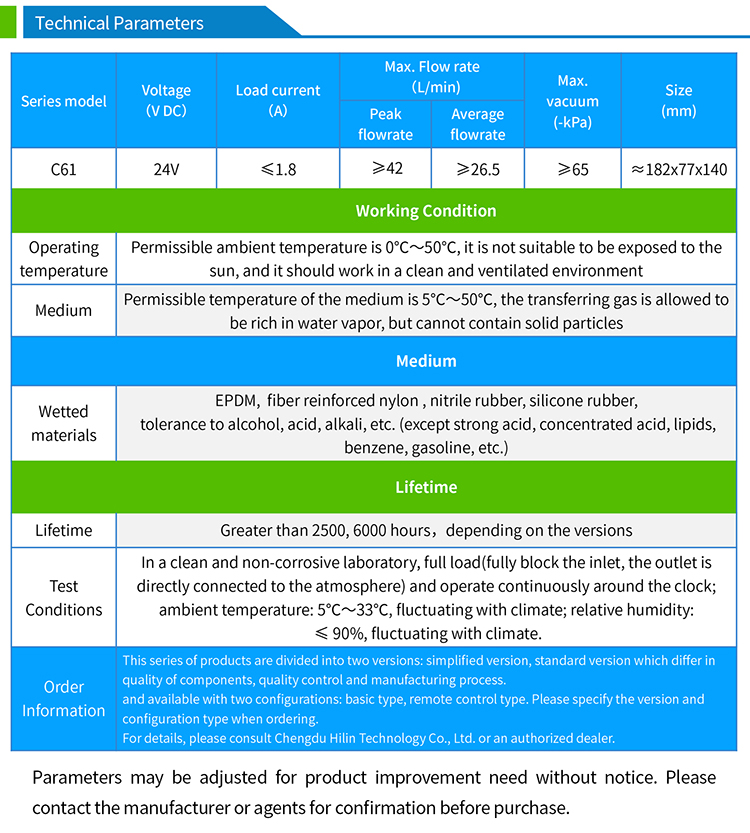

■No-load average flow: 26.5L/min
■No-load peak flow: 42L/min
■Relative vacuum: -65kPa
■Overall life: St
