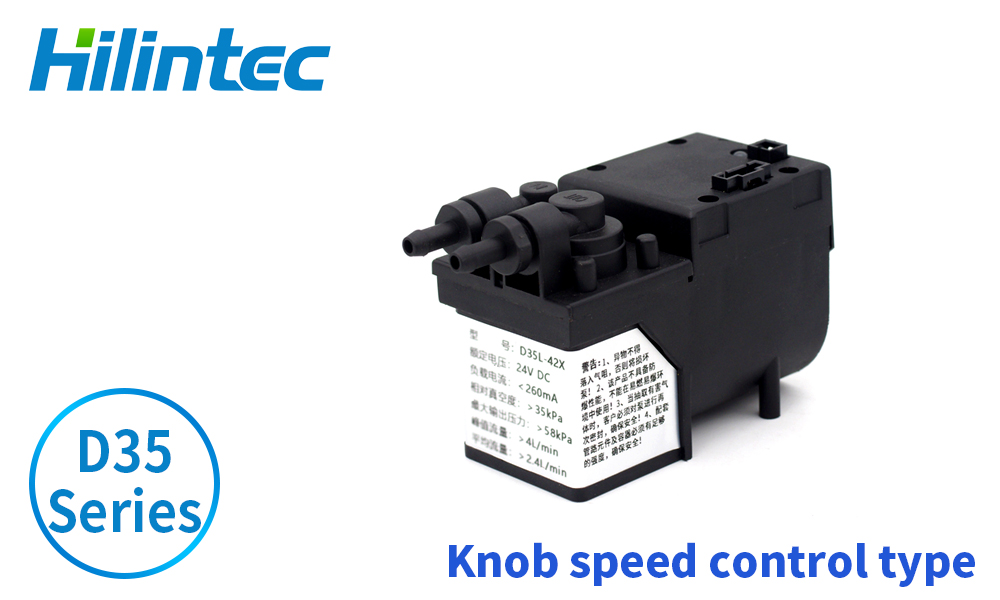

D35 series dual-purpose diaphragm vacuum pump speed controll

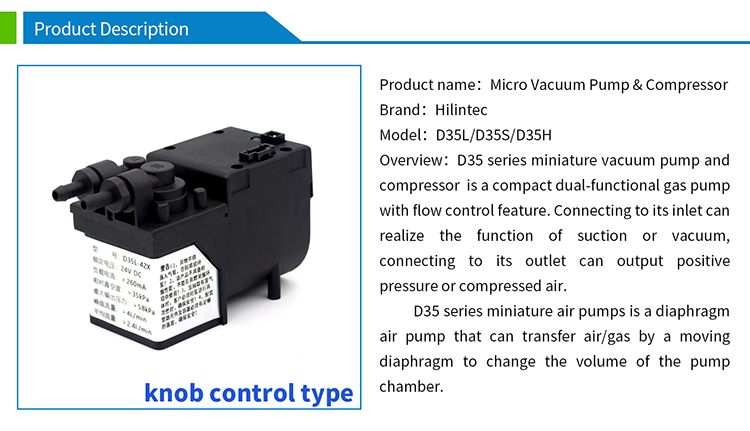

The D35 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. Connecting to its suction port can realize the function of pumping or vacuuming, and connecting to its exhaust port can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine,lab equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This model has good air tightness, high reliability and supports remote control.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine,lab equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This model has good air tightness, high reliability and supports remote control.
■Equipped with LCD touch screen and speed control signal control port

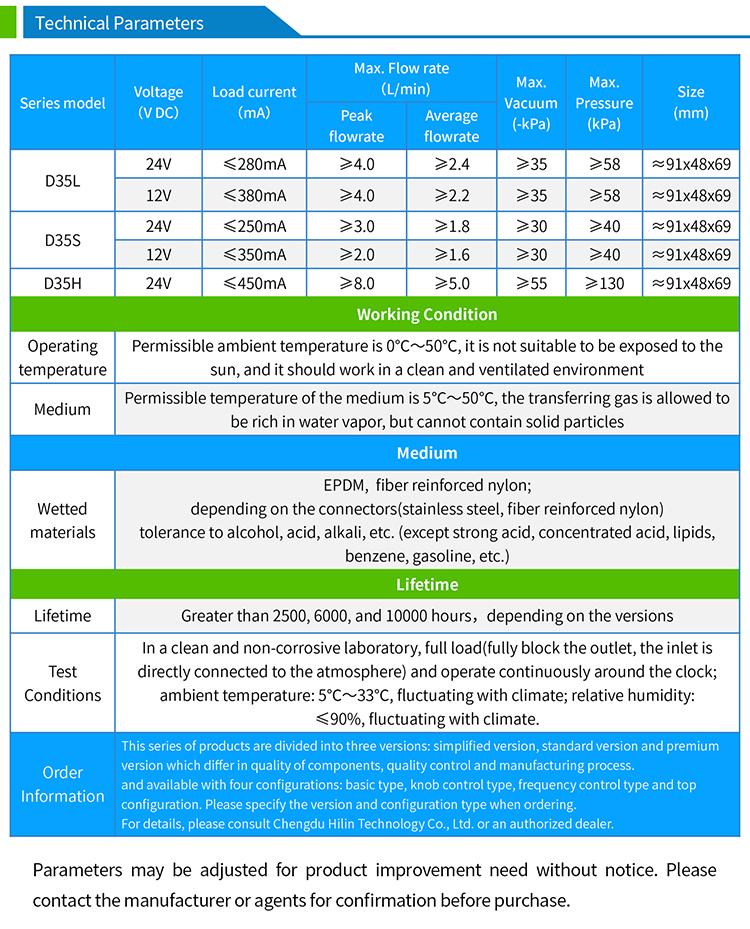

■No-load average flow: 1.6L/min~2.4L/min
■Relative vacuum: -30kPa~-35kPa
■Output pressure: 40kpa~58kPa
■Overall life: premium version>10000hr
.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
knob.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D35 series dual-purpose diaphragm vacuum pump speed controll Brochure
