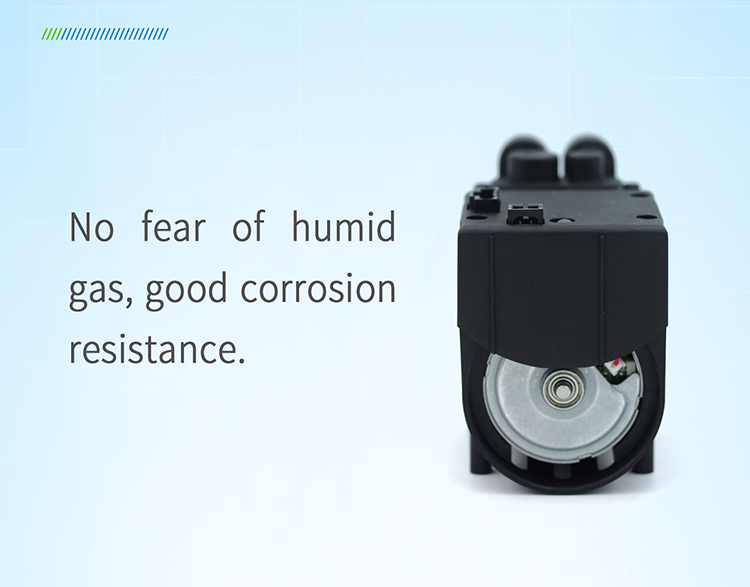

C26 series frequency speed control diaphragm vacuum pump
The C26 series miniature air pump is a compact vacuum vacuum pump with integrated speed and flow control function. The suction port connected to it can achieve the function of pumping or vacuuming.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine,lab equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 1～4L/min and unobstructed exhaust. This model product,with good air tightness and high reliability, is equipped with working status indicator and frequency speed control interface
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine,lab equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 1～4L/min and unobstructed exhaust. This model product,with good air tightness and high reliability, is equipped with working status indicator and frequency speed control interface
■Equipped with speed control signal port and replaceable pneumatic connector

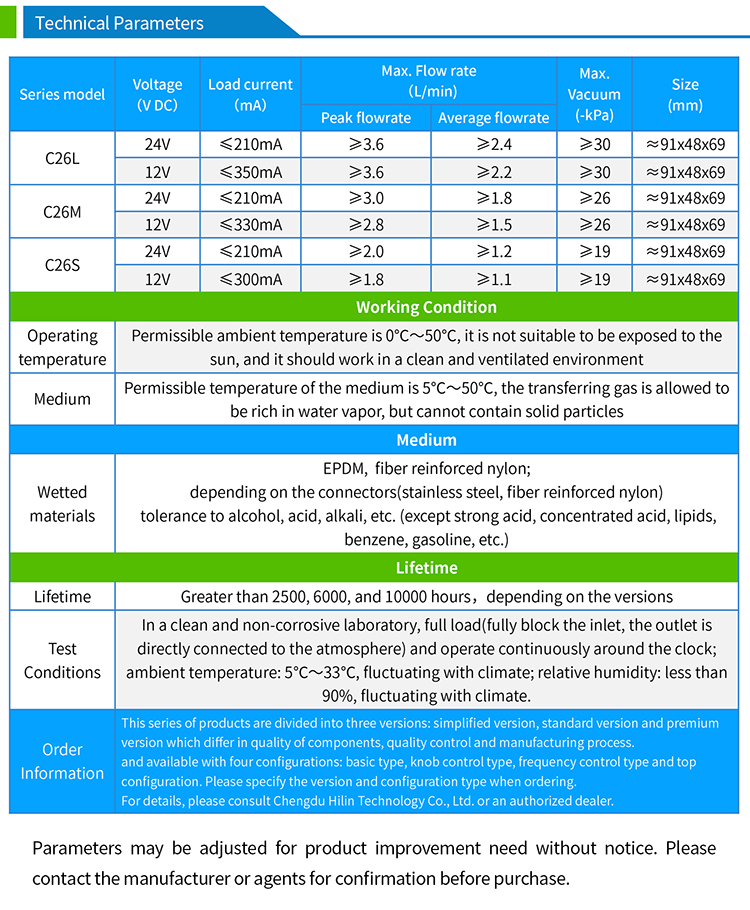

■No-load average flow: 1.1/min~2.4L/min
■No-load peak flow: 1.8L/min~3.6L/min
■Relative vacuum: -19kPa~-37kPa
■Overall life: premium v
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download C26 series frequency speed control diaphragm vacuum pump Brochure
