C30 series basic type brushless motor diaphragm vacuum pump
The C30 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. Connecting to its suction port can realize the function of pumping or vacuuming.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis fields with a flow rate of 4-6L/min and unobstructed exhaust. This model is equipped with stainless steel hose connector as standard, which has good air tightness and high reliability.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis fields with a flow rate of 4-6L/min and unobstructed exhaust. This model is equipped with stainless steel hose connector as standard, which has good air tightness and high reliability.

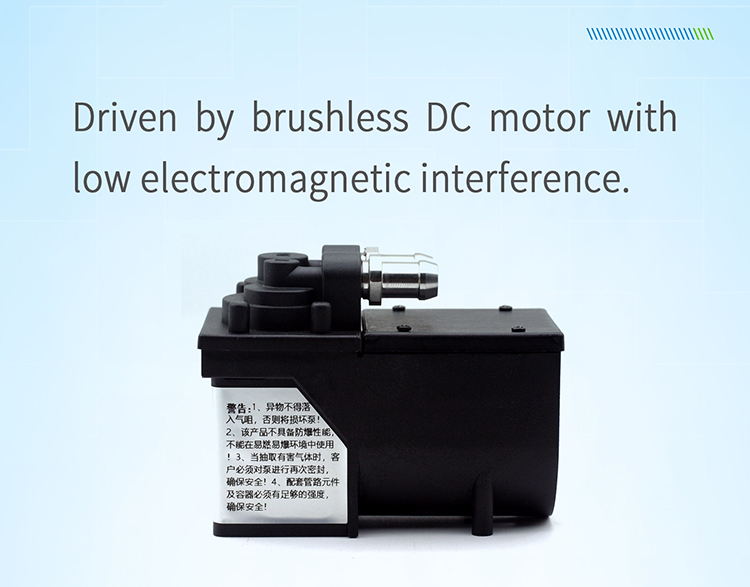

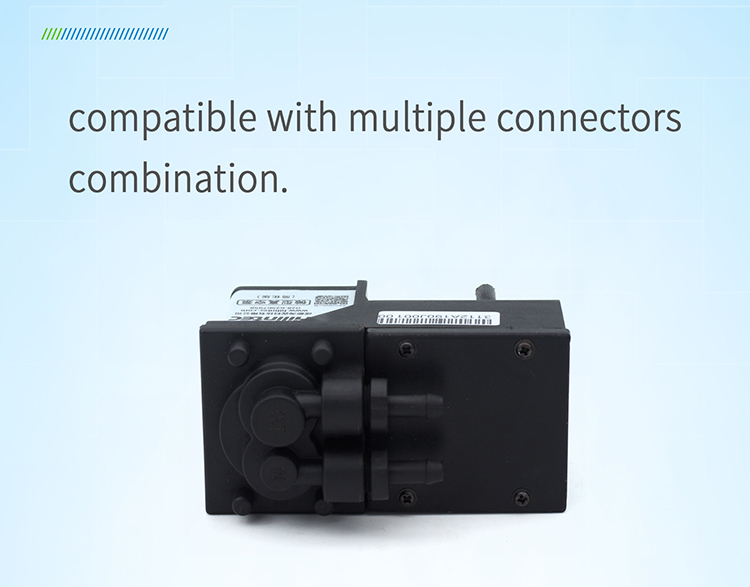

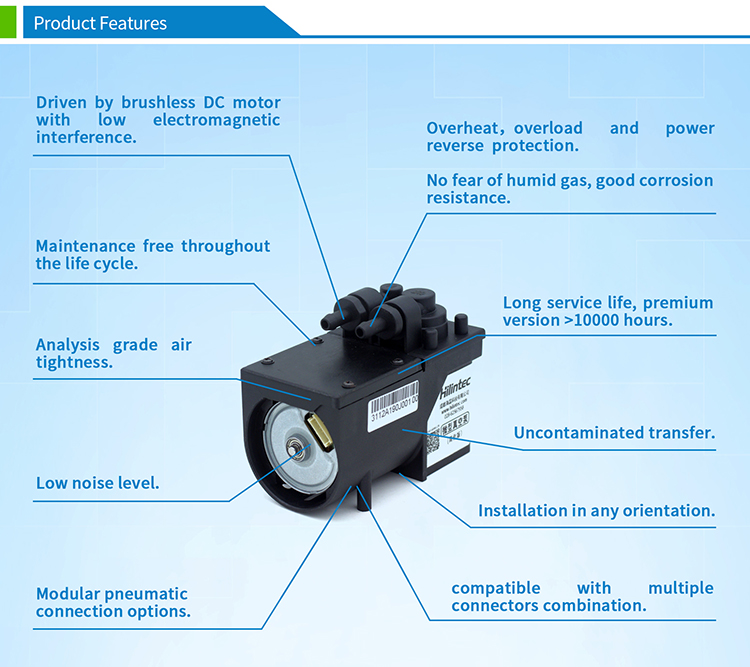

■Equipped with DC brushless motor and replaceable pneumatic connector

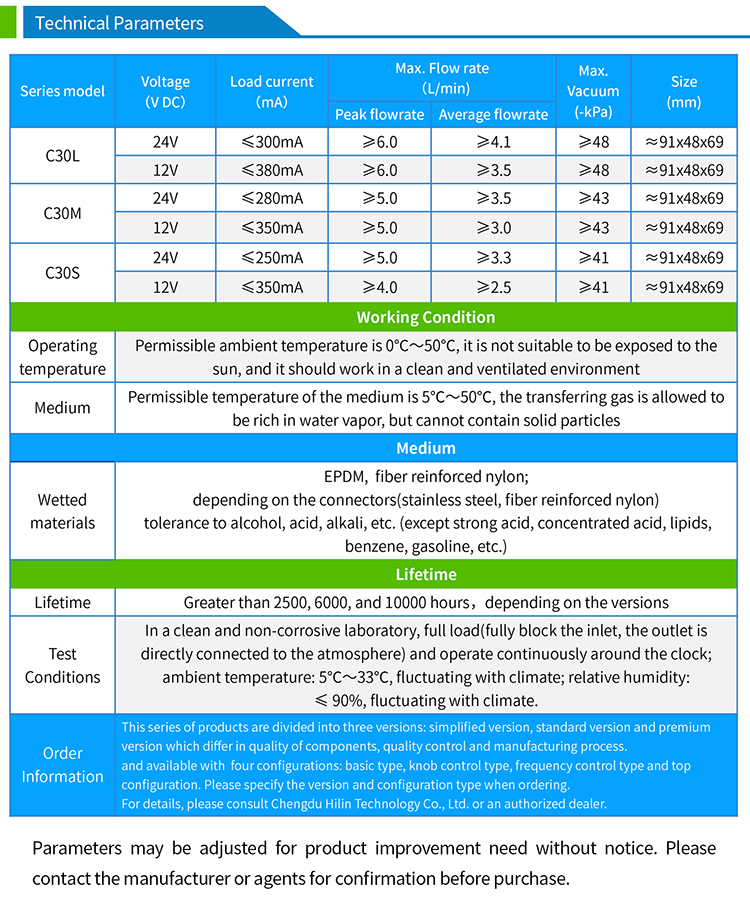

■No-load average flow: 2.5L/min~4.1L/min
■No-load peak flow rate: 4L/min~6L/min
■Relative vacuum: -41kPa~-48kPa

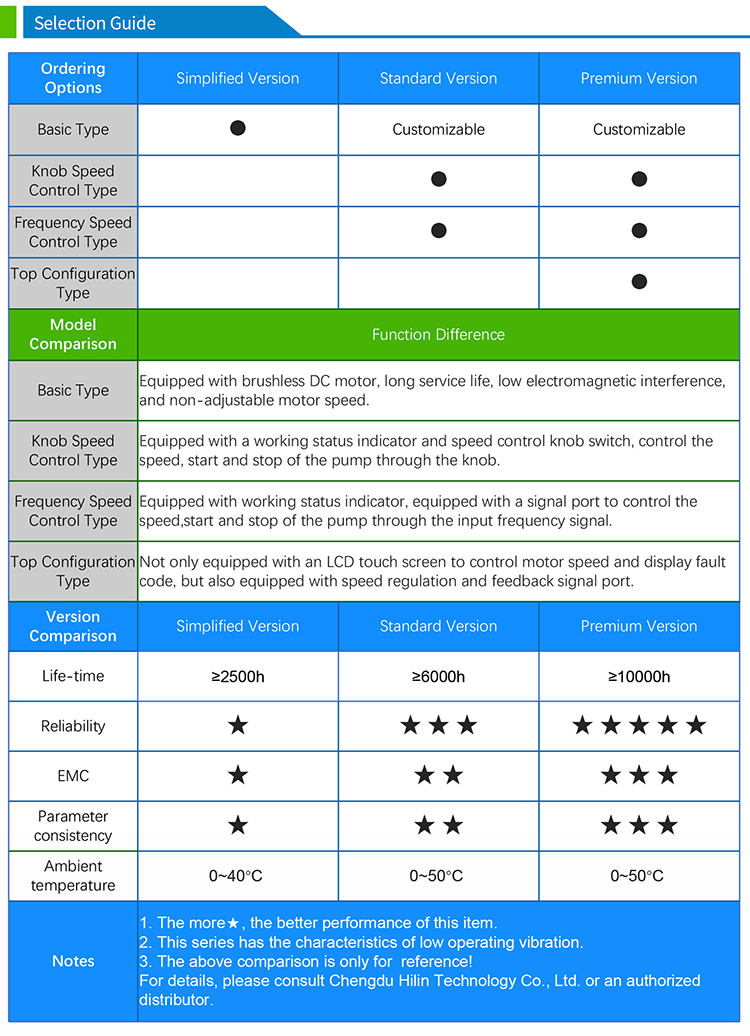

■Overall life: simplified ver
.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download C30 series basic type brushless motor diaphragm vacuum pump Brochure
