D35 series top configuration dual purpose diaphragm pump

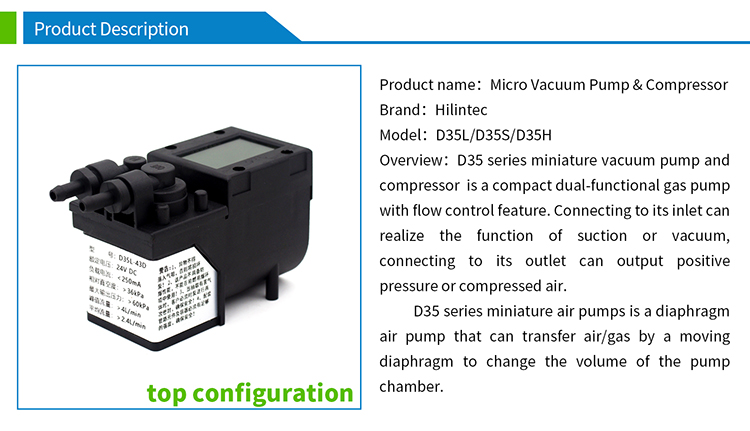

The D35 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming, and the exhaust port connected to it can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This product model,with good air tightness and high reliability, is equipped with an LCD display, which can touch control the start and stop and speed of the pump, and can display the running status of the pump and fault codes.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This product model,with good air tightness and high reliability, is equipped with an LCD display, which can touch control the start and stop and speed of the pump, and can display the running status of the pump and fault codes.

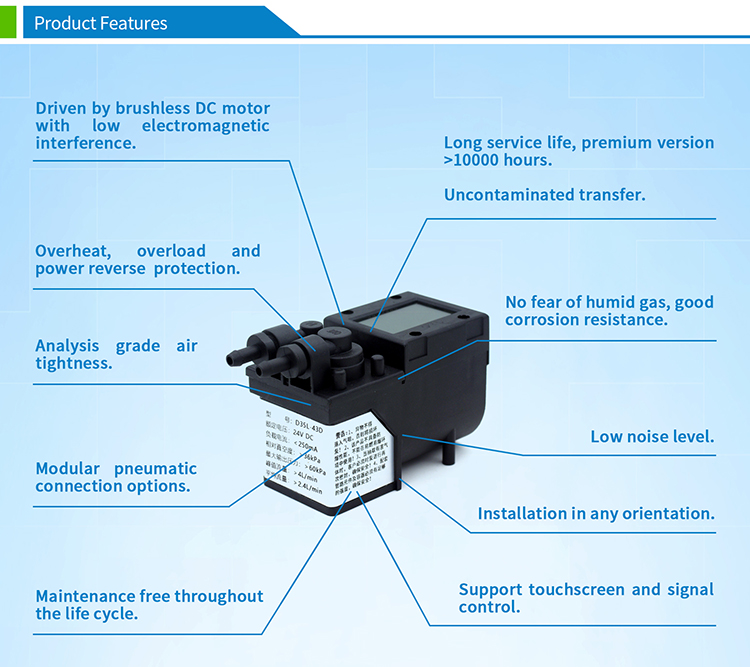

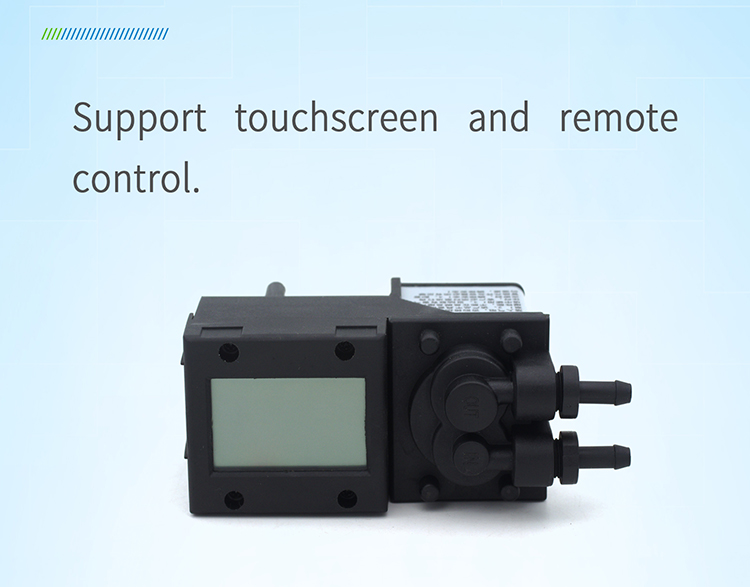

■Equipped with LCD touch screen and speed control signal control port

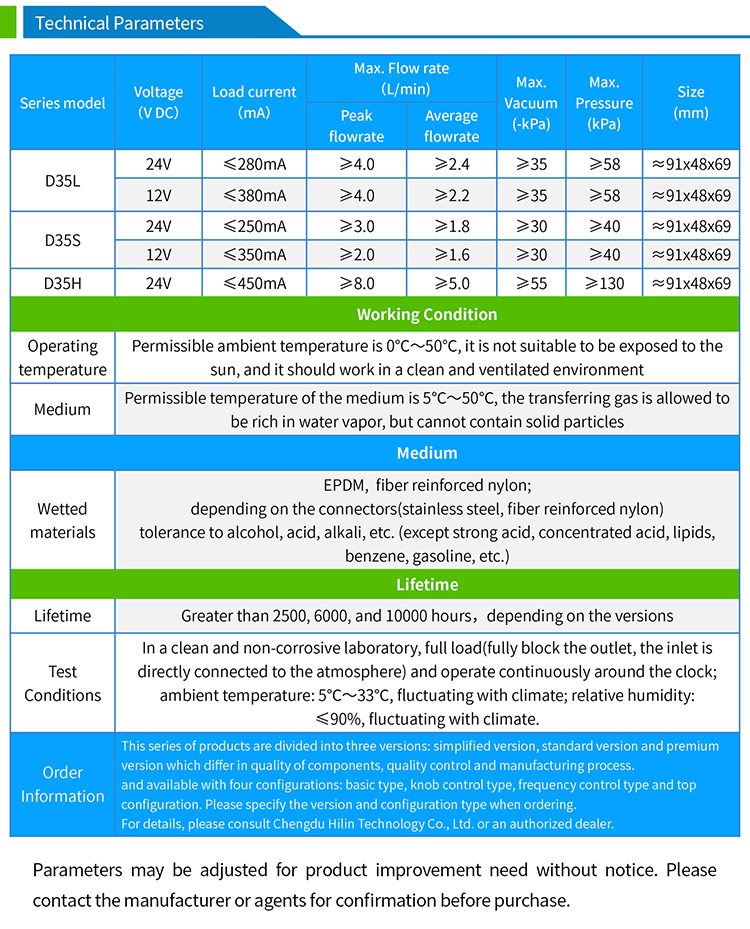

■No-load average flow: 1.6L/min~2.4L/min
■Relative vacuum: -30kPa~-35kPa
■Output pressure: 40kpa~58kPa
■Overall life: Quality version>10000hr
.jpg)
top.jpg)
top.jpg)
top.jpg)
top.jpg)
top.jpg)
top.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D35 series top configuration dual purpose diaphragm pump Brochure
